Voltage Stabilizer

Q. What Is Servo Voltage Stabilizer ?

A servo voltage stabilizer is a stabilizer which constantly monitors the output voltage and controls variations in the input voltage by the movements of a motor. In other words, it automatically regulates the voltage. This motor decides the output voltage on the transformer. It is considered to be a cheap and good voltage stabilizer. This is a perfect solution to protect the appliances from voltage fluctuations. HI-TECH India the leaders in voltage stabilizer manufacturers, offers advanced micro controller based voltage stabilizers.

Q. What Is The Importance Of Servo Voltage Stabilizer ?

A stabilizer is highly important for optimum performance of any electrical or electronic equipment that maintains input mains voltage stability. A fluctuation, be it a high voltage or low voltage can prove harmful on the voltage-sensitive devices. Hence, a solution has been identified by servo stabilizer manufacturers that will guarantee that the voltage will be under the safety limits. The stabilizer ensures that the load is operated within safety limits and machines operate at a better efficiency avoiding losses.

Q. Why Hi-Tech Servo Voltage Stabilizer ?

HI-TECH is the premier voltage stabilizer manufacturers in Jalgaon & Jalgaon offers specially designed solutions. These solutions are created using the advanced microcontroller in which the voltage stabilizer provides precise and accurate correction with a feature of auto-calibration. As innovative servo stabilizer manufacturers in India, we have been employing an instant response system using a feedback mechanism to enhance the correction of automatic voltage stabilizer.

Features

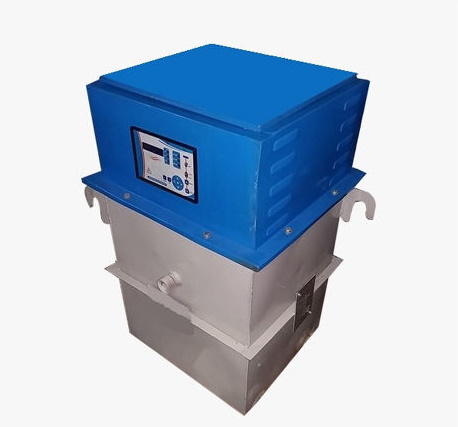

Single Phase Oil Cooled (SPOC)

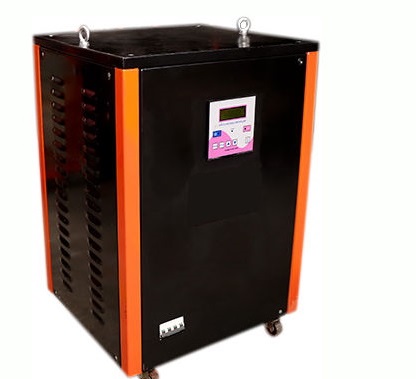

Single Phase Air Cooled (SPAC)


Rating

1KVA - 60KVA




Input Voltage

  • 140 V to 300V
  • 150 V to 270V
  • 170 V to 270V
  • 1 Phase
  • 50 Hz

Input frequency

47 Hz TO 53 Hz

Output Voltage

  • 1 Phase
  • 50 Hz
  • 230 +/- 1%
  • 220 +/- 1%
  • 240 +/- 1%

Voltage Regulation

+/- 1%

Motorization

AC Motor

Efficiency

Better Than 98%

Cooling

  • Oil Cooled  Upto 300KVA (SPOC)
  • Air Cooled Upto 100KVA  (SPAC)

Waveform distortion

Nil

Rate of Corrections

Usually 25V/Sec/Phase but depends on rating.

O/P Voltage Adjustment

By means of programming.

Controls

  • Auto / Manual.
  • Microprocessor Based Control In Auto Mode




Protection /Specification

  • Under/Over voltage cut off by contactor
  • Short Circuit Protection
  • Overload & Short Circuits Protection By MCCB
  • Phase & Neutral reversal

Indication

  • Fix & Scrolling LCD Window to see all the Standard I/P & O/P Parameters of the Stabilizer.

Additional features

Inbuilt Manual bypass switch

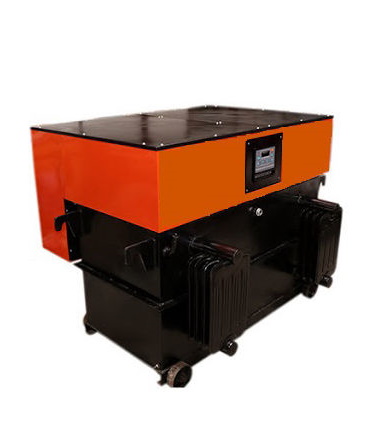

Three Phase Oil Cooled (TPOC)

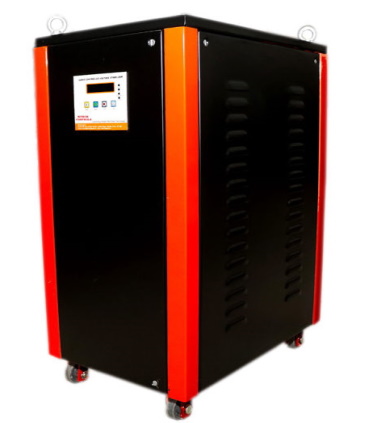

Three Phase Air Cooled (TPAC)


Rating (3PH-3PH)

5KVA - 3000KVA(Microprocessor Based)




Input Voltage

  • 300 V to 500V
  • 340 V to 480V
  • 360 V to 470V
  • 3 Phase
  • 4 Wires
  • 50 Hz
  • Unbalance

Input frequency

47 Hz TO 53 Hz

Output Voltage

  • 415 +/- 1%
  • 3 Phase
  • 4 Wires
  • 50 Hz
  • Unbalance

Voltage Regulation

+/- 1%

Motorization

AC Motor

Efficiency

Better Than 98%

Cooling

  • Oil Cooled  Upto 3000KVA (TPOC)
  • Air Cooled Upto 200KVA  (TPAC)

Waveform distortion

Nil

Rate of Corrections

Usually 50V/Sec/Phase but depends on rating.

O/P Voltage Adjustment

By means of programming.

Controls

  • Auto / Manual
  • In Auto Mode Microprocessor Controls




Protection /Specification

  • Under/Over voltage cut off by contactor
  • Short Circuit Protection
  • Overload & Short Circuits Protection By MCCB
  • Phase & Neutral reversal
  • Single Phasing Preventer.

Indication

  • Fix & Scrolling LCD Window to see all the Standard I/P & O/P Parameters of the Stabilizer.

Additional features

Inbuilt Manual bypass switch
