Applications

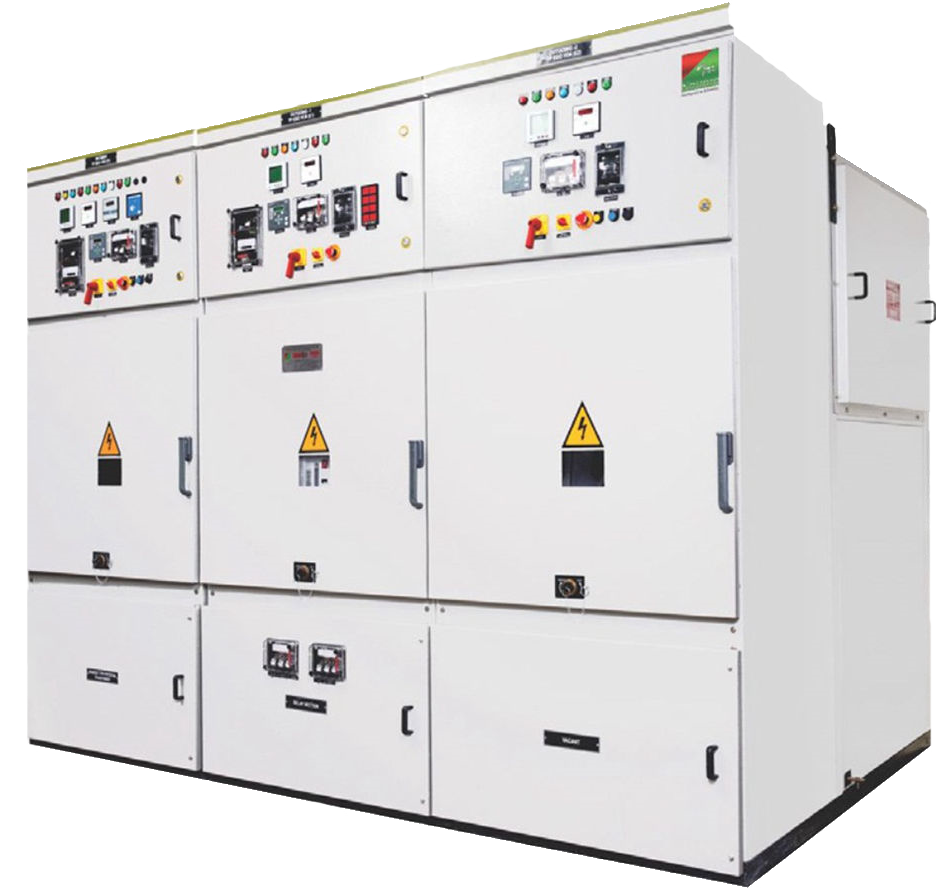

Power Distribution Board is used for electrical Power Distribution. In this ACB, MCCB, SDF, MCB etc are the main equipments. This receives supply from PCC. Power Distribution Board offers Isolation and Short Circuit as basic protections. Other Protections like over current, Earth Fault, Earth Leakage etc are offered on case to case basis. Designing needs cable entry, access, site conditions, place of placement etc. information.

• Spacious arrangement is made for cable termination ensuring comfortable operation & easy maintenance.
• Metallic/Transparent barriers are provided, within the cubicle for prevention of human contract with live part accidentally.
• Provision of double door at rear of the panel.
• Panels are very sleek and aesthetics is excellent.
• Each panel is provided with plastic drawing pocket to house relevant drawings.
• Bolted modular construction facilities modification, retrofitting, extensibility in minimum possible time.
• Provision of additional door flap over steel lock causing further barrier to unauthorized operation and excellent aesthetics.
• Specially designed concealed profile of neoprene is used for gasketing to ensure dust protection.
• Perforated sheet shroud to main horizontal busbar chamber.
• Cubicles having controls are equipped with lamp & socket.
• Two nos. of power socket including MCB/fuses are provided to avoid undesired unsafe wire tapping from bus bar (as an option.)
