| Model | ON-01 | ON-02 | ON-03 | ON-04 | ON-05 | ON-06 | ON-075 | ON-10 |
|---|---|---|---|---|---|---|---|---|
| KVA | 1 | 2 | 3 | 4 | 5 | 6 | 7.5 | 10 |
| Capacity | 800W | 1600W | 2400W | 3200W | 4000W | 4800W | 6000W | 8000W |
| Version No. | 41-2 | 41-2 | 41-2 | 41-2 | 37-2 | 37-2 | 37-2 | 37-2 |
| AC INPUT | Input voltage | 230 VAC + 20 % |
|---|---|---|
| Input Frequency | 50 Hz +/- 6 % | |
| Input Power factor | 0.85 to Unity* | |
| DC CHARGER | Rectifier | IGBT based PFC Type* |
| Battery Voltage (Customizable) |
36V | 48V | 72V | 96V | 120-144V | 120-144V | 144-180V | 180-192V | |
| AC Output | Output voltage | 230 VAC +/- 1 % |
| Output Frequency | 50 Hz +/-0.5 % | |
| Output Power factor | 0.8 to 1 lag | |
| Output waveform | PWM Sine wave | |
| Galvanic Isolation | Inbuilt Galvanic Isolation Transformer Provided | |
| Harmonic Distortion | Less than 3 % on Linear Load | |
| Transient Recovery | .+ 4 % from 0 to Full load and corrected within 60 msec. | |
| Inverter Efficiency | 85 % - 90 % Depending on DC voltages |
| Bypass Facility | Audible Noise | Design ambient | Relative Humidity | Enclosure | Dimensions in mm (LxWxH) |
|---|---|---|---|---|---|
| Manual / Static Bypass Switch* | Less tdan 50 dB at 1 meter | 0-50o C | Max. 95 % Non Condensing | M.S. Powder coated with castor wheels. |
600x280x550
650x370x650
770 x420 x750
|

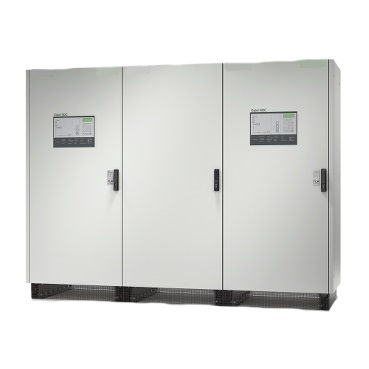

| Model | ON-10 | ON-15 | 0N-20 | 0N-25 | 0N-30 | 0N-40 | 0N-50 |
|---|---|---|---|---|---|---|---|
| KVA | 10 | 15 | 20 | 25 | 30 | 40 | 50 |
| Capacity | 8KW | 12KW | 16KW | 20KW | 24KW | 32KW | 40KW |
| Version No. | 40-2 / 90 | ||||||
| AC INPUT | Input voltage | 415 VAC +15 %, -20 % |
|---|---|---|
| Input Frequency | 50 Hz +/- 6 % | |
| Input Power factor | > 0.85 | |
| DC CHARGER | Rectifier | IGBT Based APFC type / SCR 6 pulse |
| Battery Voltage (Customizable) |
240 - 360 | V 360V | |
| AC Output | Technology | IGBT Based Double Conversion PWM Inverter using Micro Controller |
| Output voltage | 230 VAC +/- 1 % | |
| Output Frequency | 50 Hz +/- 0.5 % | |
| Output Power factor | 0.8 to 1 lag | |
| Output waveform | PWM Sine wave | |
| Galvanic Isolation | Inbuilt Galvanic Isolation Transformer Provided | |
| Harmonic Distortion | Less than 3 % on Linear Load | |
| Transient Recovery | .+ 4 % from 0 to Full load and corrected within 60 msec. | |
| Inverter Efficiency | > 90 - 92 % Depending on DC voltage |
| Bypass Facility | Audible Noise | Design ambient | Relative Humidity | Enclosure | Dimensions in mm (LxWxH) |
|---|---|---|---|---|---|
| Manual / Static Bypass Switch* | Less tdan 60 dB at 1 meter | 0-50o C | Max. 95 % Non Condensing | M.S. Powder coated with castor wheels. |
770x420x750
1200x450x800
1200x570x1000
950x450x800
|
| Model No. | 550E | 750E | 1000E | 1700E | 2000E | 3000E |
|---|---|---|---|---|---|---|
| Output Rating | 550/330 | 750/450 | 1000/600 | 1700/1020 | 2000/1200 | 3100/1800 |
| DC Bus | 12V | 24V | 24V | 24V | 24V | 36V |
| Output Voltage(nom),ms | Output Frequency | Output Waveform (PWM) | Low Battery Audio Alarm | Transfer Time, Mains To Batt | Short Circuit Protection | Efficiency (Type Condition) |
| 230VAC | 50Hz +- 1% | Quasi Sinewave | Yes | 3 m sec (typical) | Yes | >85% |
| Input Voltage | Input Frequency | Output Voltage |
| 155-275V | 50Hz +- 5% | 190-230V |
